Multispectral and Thermal

Soporte multiespectral

Desde la versión 0.9.9, ODM tiene soporte básico para la normalización radiométrica, que es capaz de generar ortofotos de reflectancia a partir de cámaras multiespectrales. Las cámaras multiespectrales capturan múltiples tomas de la escena utilizando diferentes sensores de banda.

Supported Sensors

Si bien nuestro objetivo es admitir tantas cámaras como sea posible, se ha desarrollado el soporte multiespectral utilizando las siguientes cámaras, por lo que funcionarán mejor:

También pueden funcionar otras cámaras. Puede ayudarnos a ampliar esta lista compartiendo conjuntos de datos capturados con otras cámaras.

Creating Orthophotos from Multispectral Data

For supported sensors listed above (and likley other sensors), users can process multipsectral data in the same manner as visible light images. Images from all sensor bands should be processed at once (do not separate the bands into multiple folders). Users have the option to pass the --radiometric-calibration parameter with options camera or camera+sun to enable radiometric normalization. If the images are part of a multi-camera setup, the resulting orthophoto will have N bands, one for each camera (+ alpha).

NDVI and other vegetation indices can be calculated from these stitched orthophotos using software such as qGIS

Aprende a editar y ayuda a mejorar esta página!

Workflows for Non-supported Sensors

Sentera AGX710:

While the Sentera AGX710 is not officially supported by ODM, the following workflow gives some good results.

  • all JPGs from the NDRE directory should be renamed with the exact following pattern 0000X_NIR.jpg. No extra “_” should be present in the file names ie 10_51_14_IMG_00008.jpg => 00008_NIR.jpg

  • all JPGs from the nRGB directory should be renamed with the exact following pattern 0000X_RGB.jpg. No extra “_” should be present in the file names ie 10_51_14_IMG_00023.jpg => 00023_RGB.jpg

  • All renamed XXXX_NIR.jpg and XXXX_RGB.jpg should be placed in the same folder

  • The following command could be used to create an odm_orthophoto.tif file

docker run  --rm -v  input_image_dir/:/code/images \
-v output_dir/odm_georeferencing:/code/odm_georeferencing  \
-v output_dir/odm_orthophoto:/code/odm_orthophoto \
-v output_dir/odm_report:/code/odm_report \
opendronemap/odm --auto-boundary

  • After the successful ODM processing, odm_orthophoto.tif bands names could be accurately renamed using contrib/ndvi/rename_sentera_agx710_multispectral_tif.py script

python3 contrib/ndvi/rename_sentera_agx710_multispectral_tif.py  output_dir/odm_orthophoto.tif

  • output_dir/odm_orthophoto.tif could be open with QGIS with correct band names

Thermal Support

ODM has support for radiometric calibration of thermal data, which is able to generate temperature orthophotos from long-wave infrared (LWIR) cameras. LWIR images can be processed alone or as part of a multispectral dataset.

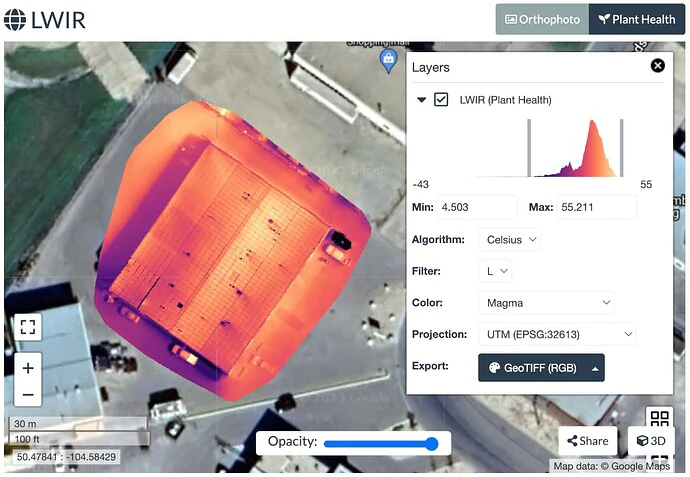

Screen shot of thermal imagery as displayed in WebODM

Hardware

While we aim to support as many cameras as possible, thermal support has been developed using the following cameras, so they will work better:

También pueden funcionar otras cámaras. Puede ayudarnos a ampliar esta lista compartiendo conjuntos de datos capturados con otras cámaras.

Uso

Process the images using the –radiometric-calibration camera parameter to enable radiometric calibration.
