Multispectral and Thermal

Multispektrální podpora

Od verze 0.9.9 má ODM základní podporu radiometrické normalizace, která umožňuje generovat reflektanční ortofotomapy z multispektrálních kamer. Multispektrální kamery snímají více záběrů scény pomocí senzorů s různými pásmy.

Supported Sensors

I když se snažíme podporovat co nejvíce kamer, multispektrální podpora byla vyvinuta s použitím následujících kamer, takže budou fungovat lépe:

Mohou fungovat i jiné fotoaparáty. Můžete nám pomoci rozšířit tento seznam tím, že budete sdílet datové sady <https://community.opendronemap.org/c/datasets/10>`_ pořízené jinými kamerami.

Creating Orthophotos from Multispectral Data

For supported sensors listed above (and likley other sensors), users can process multipsectral data in the same manner as visible light images. Images from all sensor bands should be processed at once (do not separate the bands into multiple folders). Users have the option to pass the --radiometric-calibration parameter with options camera or camera+sun to enable radiometric normalization. If the images are part of a multi-camera setup, the resulting orthophoto will have N bands, one for each camera (+ alpha).

NDVI and other vegetation indices can be calculated from these stitched orthophotos using software such as qGIS

Naučte se upravovat a pomozte zlepšit tuto stránku!

Workflows for Non-supported Sensors

Sentera AGX710:

While the Sentera AGX710 is not officially supported by ODM, the following workflow gives some good results.

  • all JPGs from the NDRE directory should be renamed with the exact following pattern 0000X_NIR.jpg. No extra ‚_‘ should be present in the file names ie 10_51_14_IMG_00008.jpg => 00008_NIR.jpg

  • all JPGs from the nRGB directory should be renamed with the exact following pattern 0000X_RGB.jpg. No extra ‚_‘ should be present in the file names ie 10_51_14_IMG_00023.jpg => 00023_RGB.jpg

  • All renamed XXXX_NIR.jpg and XXXX_RGB.jpg should be placed in the same folder

  • The following command could be used to create an odm_orthophoto.tif file

docker run  --rm -v  input_image_dir/:/code/images \
-v output_dir/odm_georeferencing:/code/odm_georeferencing  \
-v output_dir/odm_orthophoto:/code/odm_orthophoto \
-v output_dir/odm_report:/code/odm_report \
opendronemap/odm --auto-boundary

  • After the successful ODM processing, odm_orthophoto.tif bands names could be accurately renamed using contrib/ndvi/rename_sentera_agx710_multispectral_tif.py script

python3 contrib/ndvi/rename_sentera_agx710_multispectral_tif.py  output_dir/odm_orthophoto.tif

  • output_dir/odm_orthophoto.tif could be open with QGIS with correct band names

Thermal Support

ODM has support for radiometric calibration of thermal data, which is able to generate temperature orthophotos from long-wave infrared (LWIR) cameras. LWIR images can be processed alone or as part of a multispectral dataset.

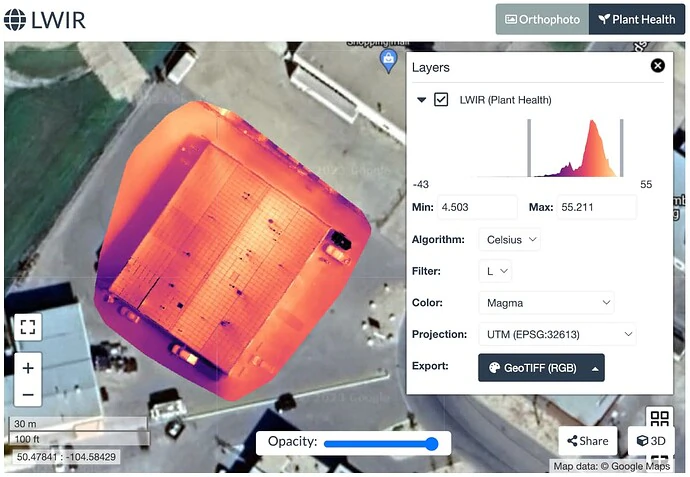

Screen shot of thermal imagery as displayed in WebODM

Hardware

While we aim to support as many cameras as possible, thermal support has been developed using the following cameras, so they will work better:

Mohou fungovat i jiné fotoaparáty. Můžete nám pomoci rozšířit tento seznam tím, že budete sdílet datové sady <https://community.opendronemap.org/c/datasets/10>`_ pořízené jinými kamerami.

Použití

Process the images using the –radiometric-calibration camera parameter to enable radiometric calibration.

Naučte se upravovat a pomozte zlepšit tuto stránku!
